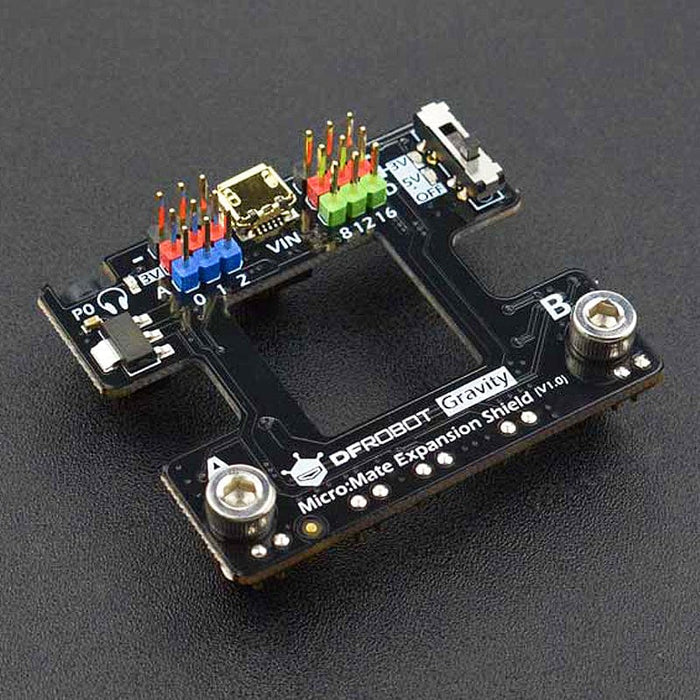

micro:Mate is a tiny micro:bit I/O expansion board for learning electronics and building DIY projects. It expands 6 sets of 3-pin I/O interfaces, capable of connecting DFRobot Gravity series modules, servo motors, sensors and jumper wires.

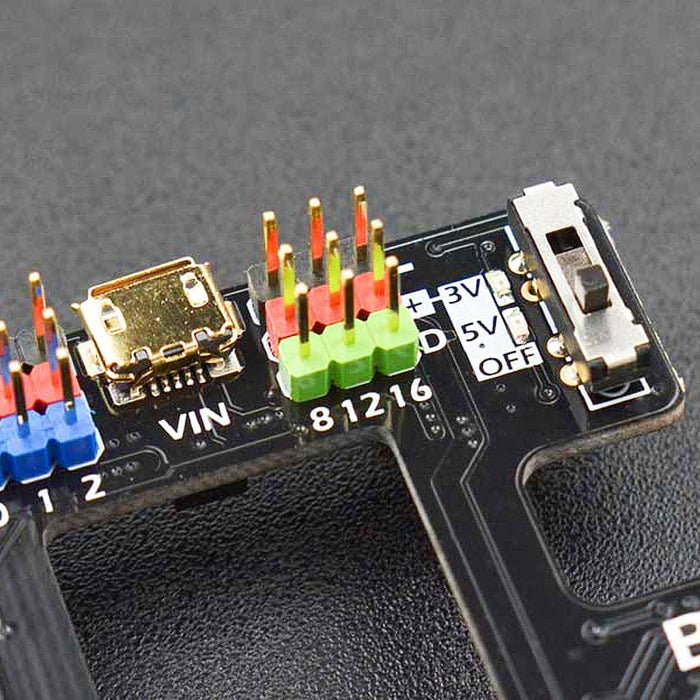

Additionally, Pin 8, 12 and 16 support voltage switch between 3V-5V, allowing up to 5V 2A digital (PWM) output!

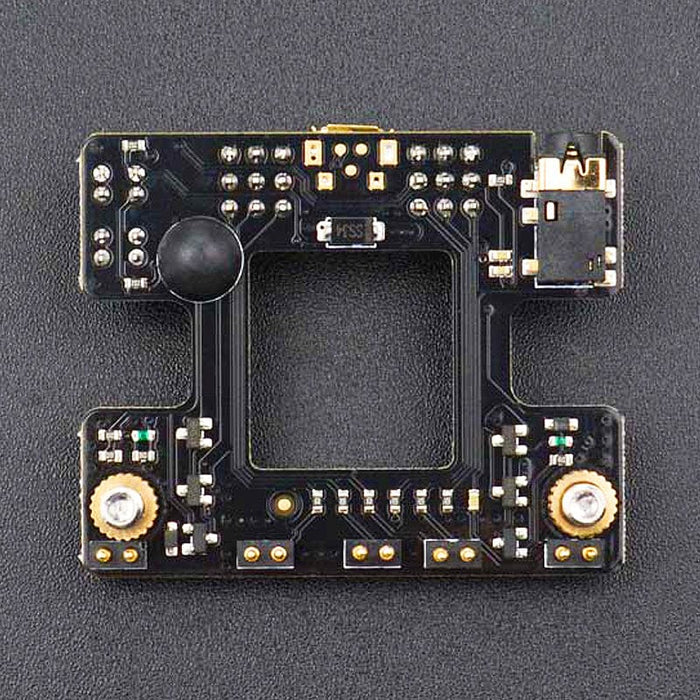

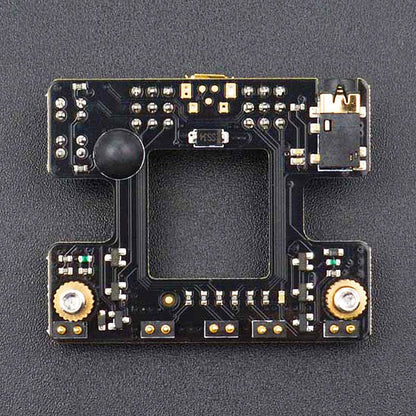

Micro:Mate is the same dimensions as the BBC micro:bit board. It connects to the micro:bit through spring-loaded contact pins ensuring an easy, compact and secure connection. The rubber bumpers and the 3.5mm audio jack on the back side ensure a stable connection and prevent reversed connections.

Note: micro:bit board is NOT included

  • The mounting screws should be well tightened to ensure a secured connection
  • micro:Mate only supports 3V (3.3V) analog input from Pin 0, 1, 2
  • The Micro USB Power port on Micro:Mate cannot be used for data transmission
  • Components with large power consumption should be connected to Pin 8, 12, 16 with a 5V power supply

Features

  • Colour-coded Gravity 3-Pin interface, compatible with hundreds of plug&play electronic modules
  • 3-way analog input; 6-way digital input/output (PWM); 3V/5V jumper switch; 3.5mm audio jack
  • External Micro USB power port, up to 5V 2A power output
  • Well-designed component lay-out and silk-screen. Reversed connection protection.

Specifications

  • Interface: 6 x Gravity 3Pin
  • Operating Voltage: 5V/3.3V
  • Input Power: <10W
  • Measuring Range: 0-3.3V (Analog), 0-5V (Digital):

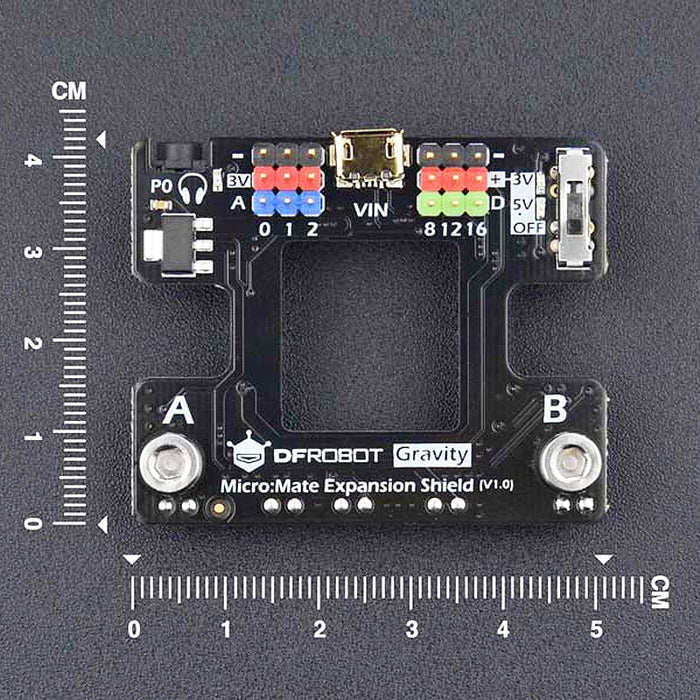

  • Dimension: 68.5 * 53.3mm/ 2.7 * 2.1 inches
  • Weight: 22.8g

Resources

  • Product Wiki
  • More Documents

Shipping List

  • 1x Micro:Mate Gravity Expansion Board

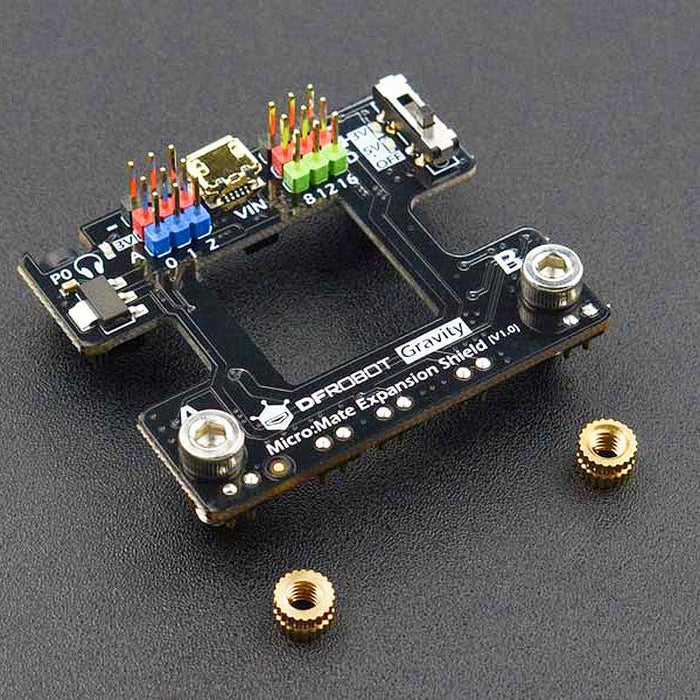

  • 2x Brass nut M4 5 x 4

micro:bit not included
